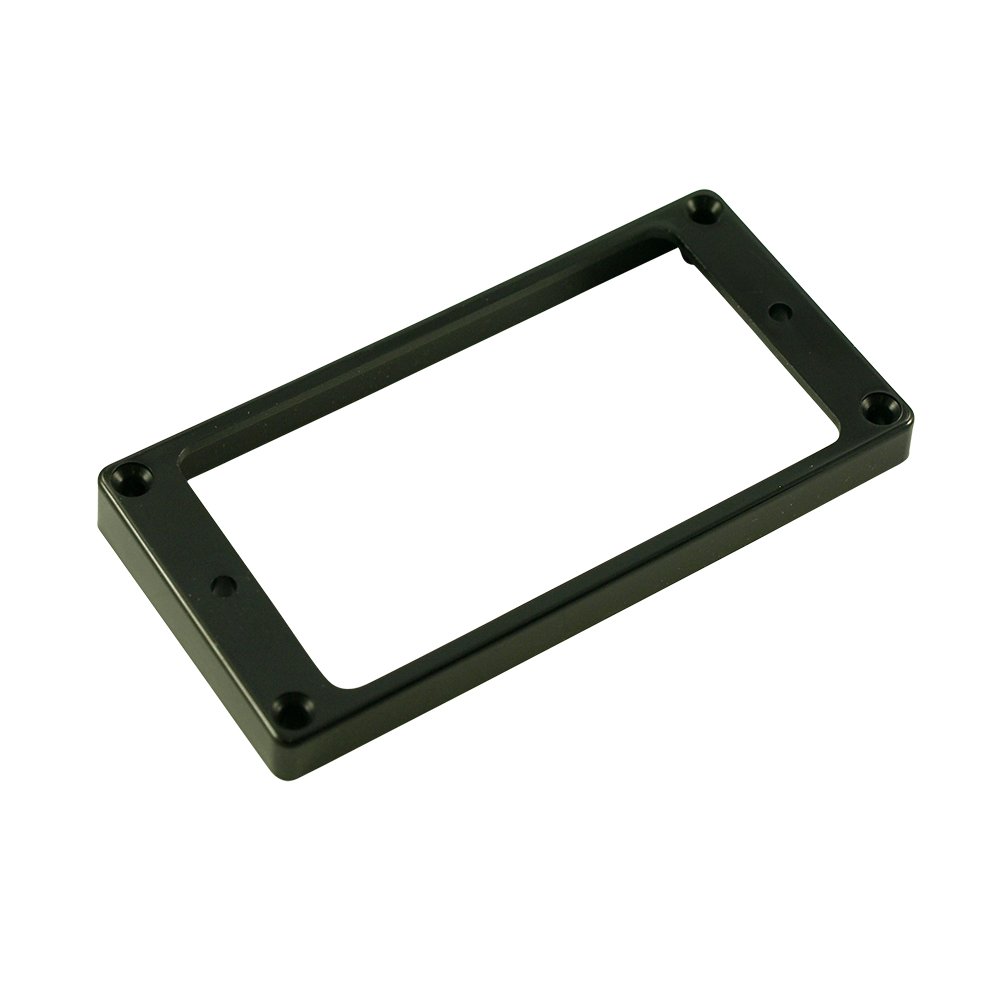

WD Flat Plastic Humbucker High Height Pickup Mounting Ring Black Single

Enhance Your Guitar Setup

Upgrade your guitar with the WD Flat Plastic Humbucker High Height Pickup Mounting Ring Black Single High Flat. Designed for precision and durability, this mounting ring ensures secure attachment for your bridge-position humbucker pickup.

Perfect Fit for Bridge Position

Crafted for guitars with two or three pickups, this tall mounting ring features an angled height profile. The side nearest to the bridge is taller, providing optimal alignment and functionality for your instrument’s design.

Reliable and Sleek Design

Made from durable black plastic, this mounting ring combines reliability with a sleek appearance. It offers both a functional upgrade and a visually seamless addition to your guitar, standing up to the demands of regular play.

High Flat- Interior Dimensions:

• Pickup cutout width = 1.5 inches (38.2mm)
• Pickup cutout length = 2.76 inches (70.2mm)

Exterior Dimensions:

• Exterior width = 1.76 inches (44.7mm)
  Exterior length = 3.50 inches (89.1mm)
• Exterior heights tall side = .375 inches (9.5mm)
• Exterior height short side = .295 inches (7.5mm)
• Height holes center to center = 3.07 inches (78mm)
• Mounting holes center to center length = 3.185 inches (8.09mm)
• Mounting holes center to center width = 1.43 inches (36.3mm)
